ArcQUBE9 is engineered as a compact and sleek lighting fixture suitable for building facades and monuments. Used in conjunction with arcDRIVE power supplies, the arcQUBE9 is developed as a cost-effective and efficient solution for many kinds of lighting application. With a modern cubic design, arcQUBE9 is ideal for both modern and more traditional architectures.

LED Source 9x2W (3R,3G,3B)
Lumen 629lm
Peak Intensity 1875cd (30°)
Input voltage DC 12V (600mA)
Max Power 16,5W
Optics 30° (12°,55°)
DMX control channels RGB, dimmer (0-100%)
Interface DMX
Controllable sections 1
Mains connection arcDrive436
Data connection arcDrive436
Protection IP66
Operating temperature -40°C/+45°C
Housing material Die-cast aluminium
Housing color Off-White

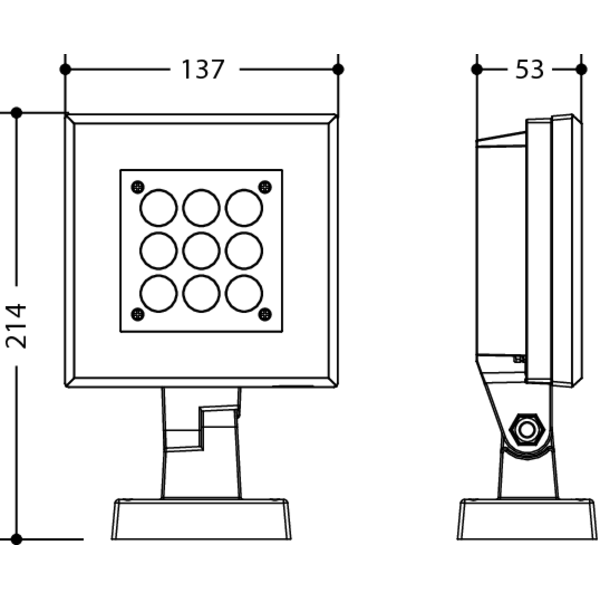

Dimensions (WxHxD) 137x214x53 (mm)
Weight 1,5Kg
