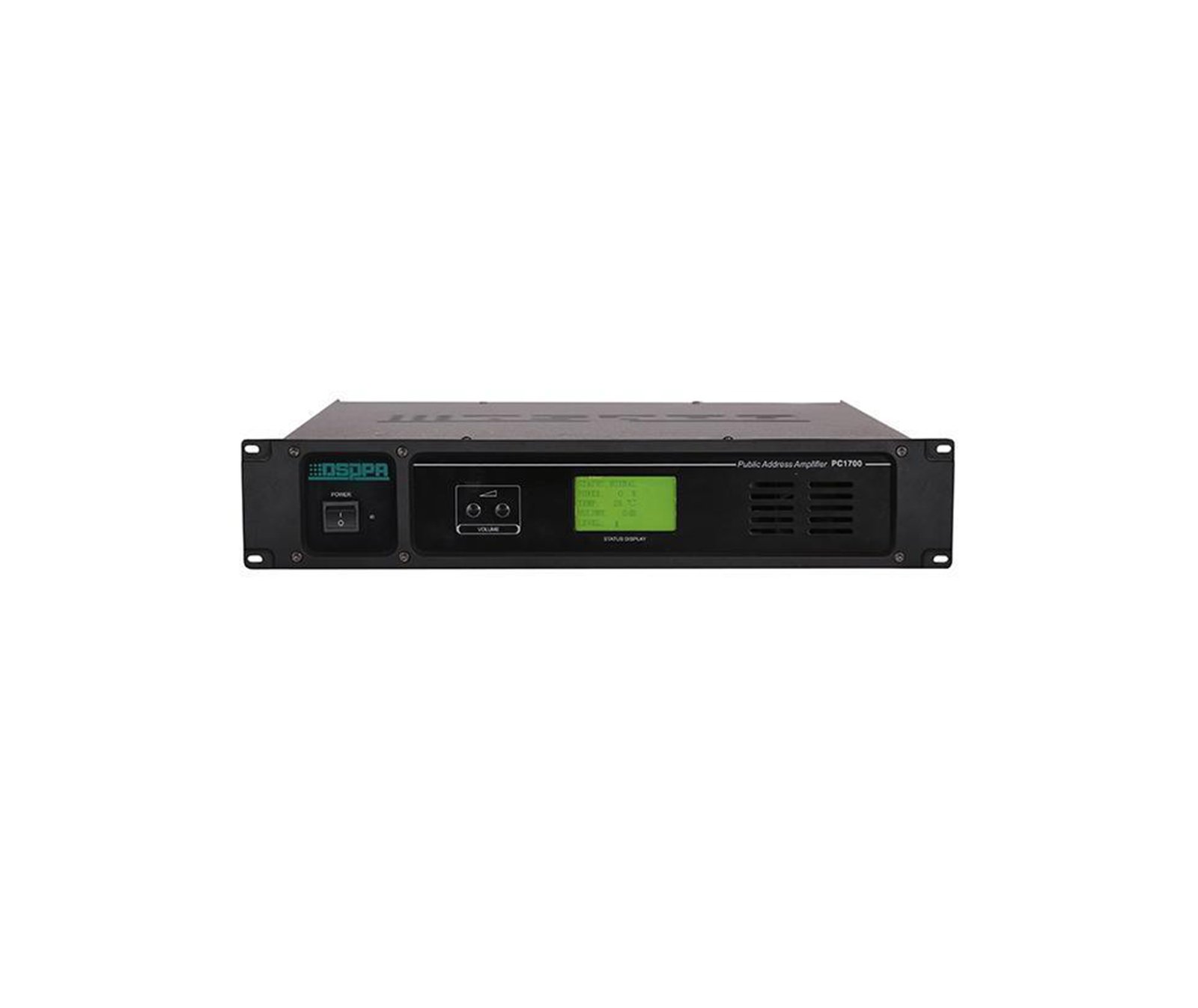

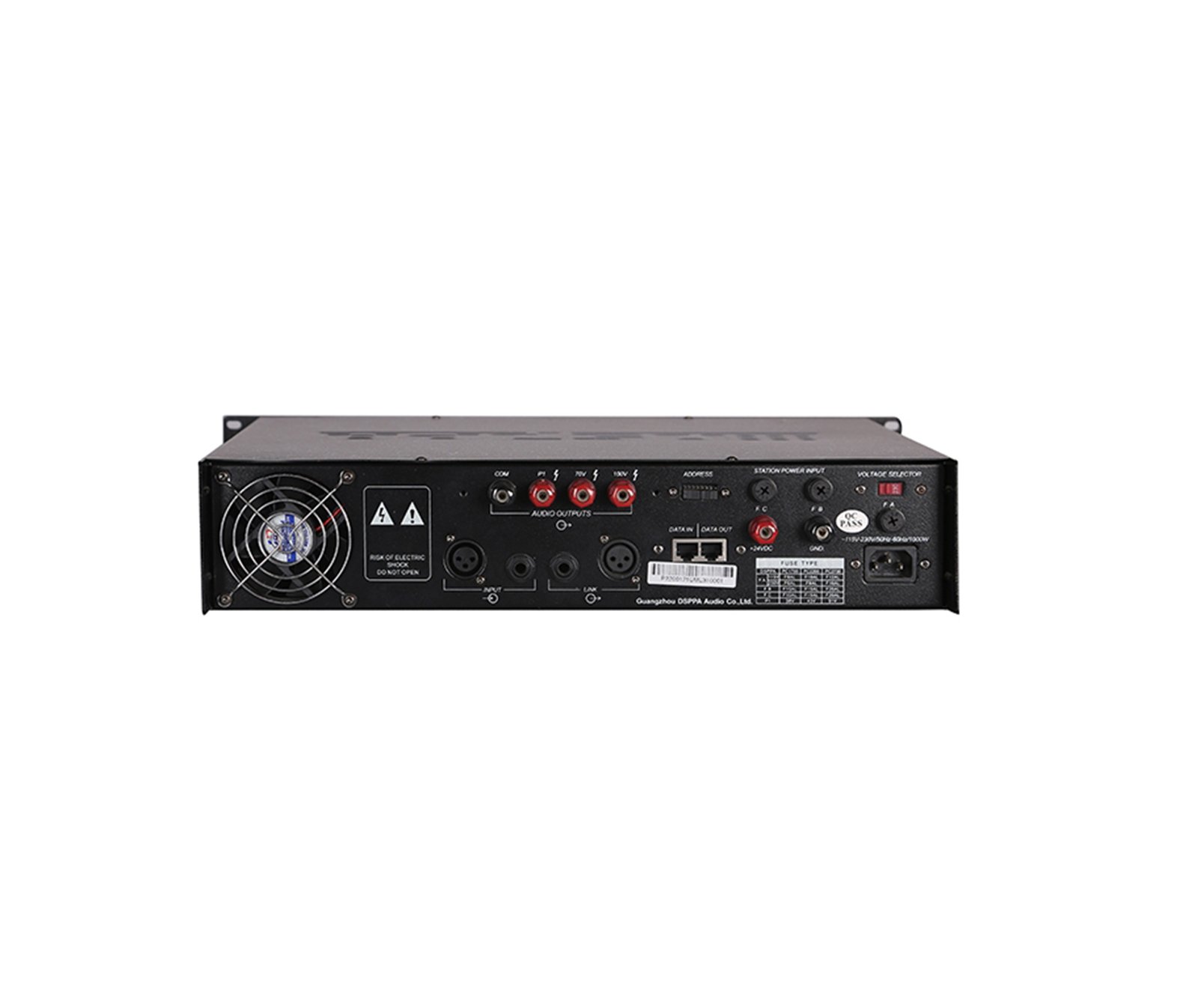

PC1700 PC10 Series Power Amplifier
● Support PC control and cascaded linkage
● Industrial design for audio project, long term & stable use
● 70V/100V & 4-16 Ω flexible speaker output
● LCD screen for indicating working status
● Reliable protection from overheat, overload, clip & short circuit
● Optional voltage among AC 220-230V, AC110V, and DC 24V.
Description
| Model | PC1700 |
| Rated power | 350W |
| Rated output voltage | 70V/100V/4-16 ohm |
| Inputsensitivity | 0dB |
| S/N Ratio | > 85dB |
| THD into 4W/1kHz | <0.3% |
| Frequency response | 100Hz ~20kHz (±3dB) |
| Indicators | Power,clip,signal,Prot,and TEMP |
| Protection | Power turn on/turn off,Overheating,DC voltage&Short Circut |
| Powerrequirement | DC24V/ AC220~240V/50~60Hz |
| Unit Size (mm) | (L×W×H)483´380×88 |
| Netweight | 11Kg |
| Gross weight | 12Kg |
