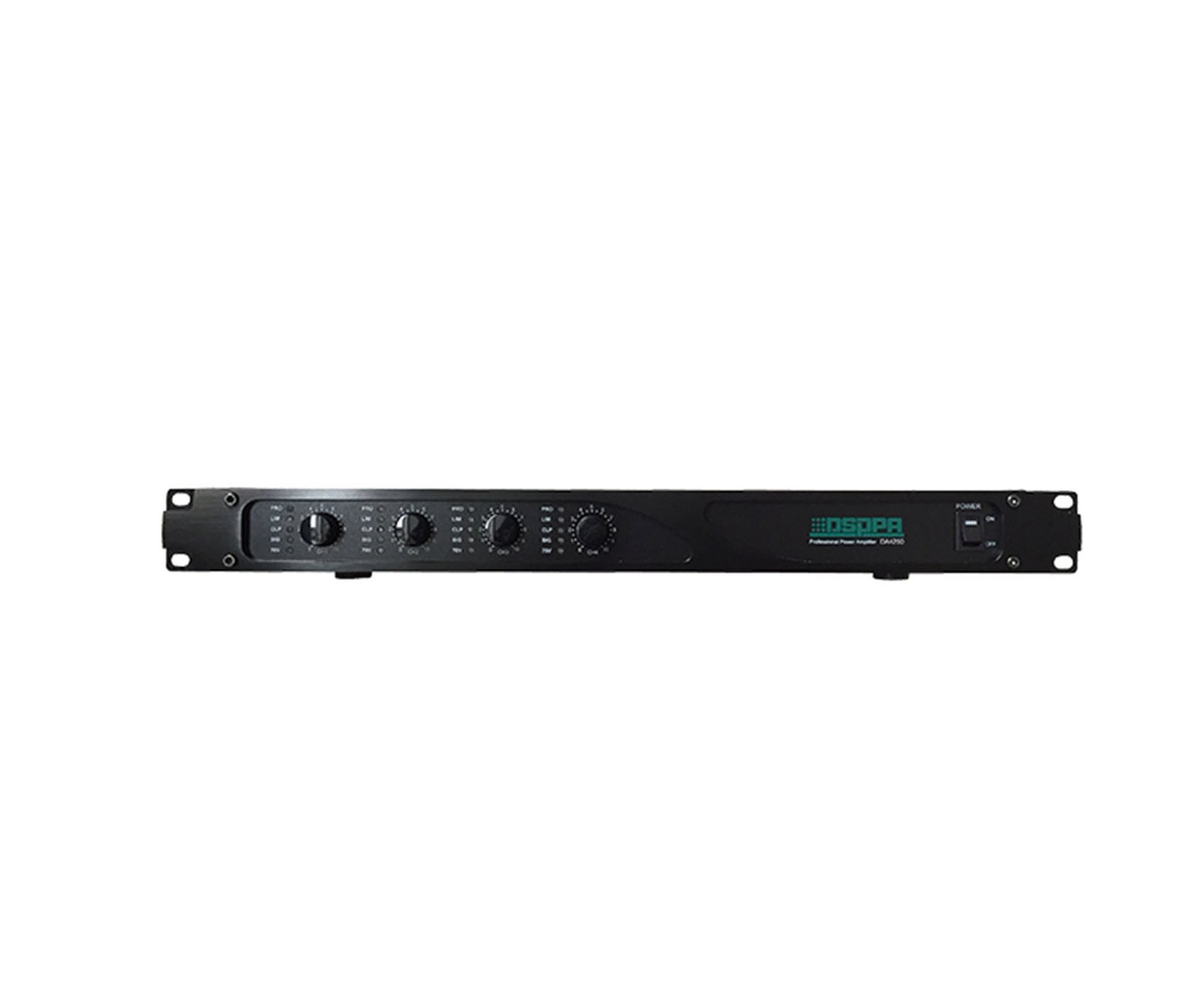

DSPPA DA4250
1,908.00₼
Description
4*250W 4 Channels Digital Amplifier
| Model | DA4250 |
| Number of channels | 4 |
| Rated output power of each channel | 250W |
| Input sensitivity | 775mVRMS（0dBV/ all balanced input) 100VRMS (100V unbalanced input) |
| SNR (signal-to-noise ratio) | >80dB (100VRMS output) |
| Input impedance | 60K ohms (balanced)20K ohms (balanced priority) 100K ohms (100V unbalanced) |
| Channel separation | >70dB(1KHz) |
| Frequency response | 80Hz-15kHz (±3dB normal operating conditions) |
| THD (total harmonic distortion) | <0.3 % (1kHz normal operating conditions) |
| Up speed | >29V/us |
| Priority threshold | >10mVp (prior balanced line input) >1000mVp (prior100VRMS line input) |
| Indicators | “Protection”, “Limit”, “Voltage limit”, “Signal”, “70V gear” |
| Protection | Power-on, high temperature, DC, short circuit |
| Power supply | AC180-250V/50Hz DC24V (rated output power -3dB) |
| Overall dimensions (mm) | （L×W×H）552×510×105 |
| Machine dimension (mm) | （L×W×H）483×435×44 (not including machine legs) |
| Machine legs | Four 6.5mm high soft plastic machine legs, can be removed as needed |
| Power consumption (AC220V) | 1240W |
| Power consumption (DC24V) | 708W |
| Static power consumption (AC220V) | 57W |
| Static power consumption (DC24V) | 57.6W |
| Gross weight (kg) | 8 |
| Net weight (kg) | 7 |
