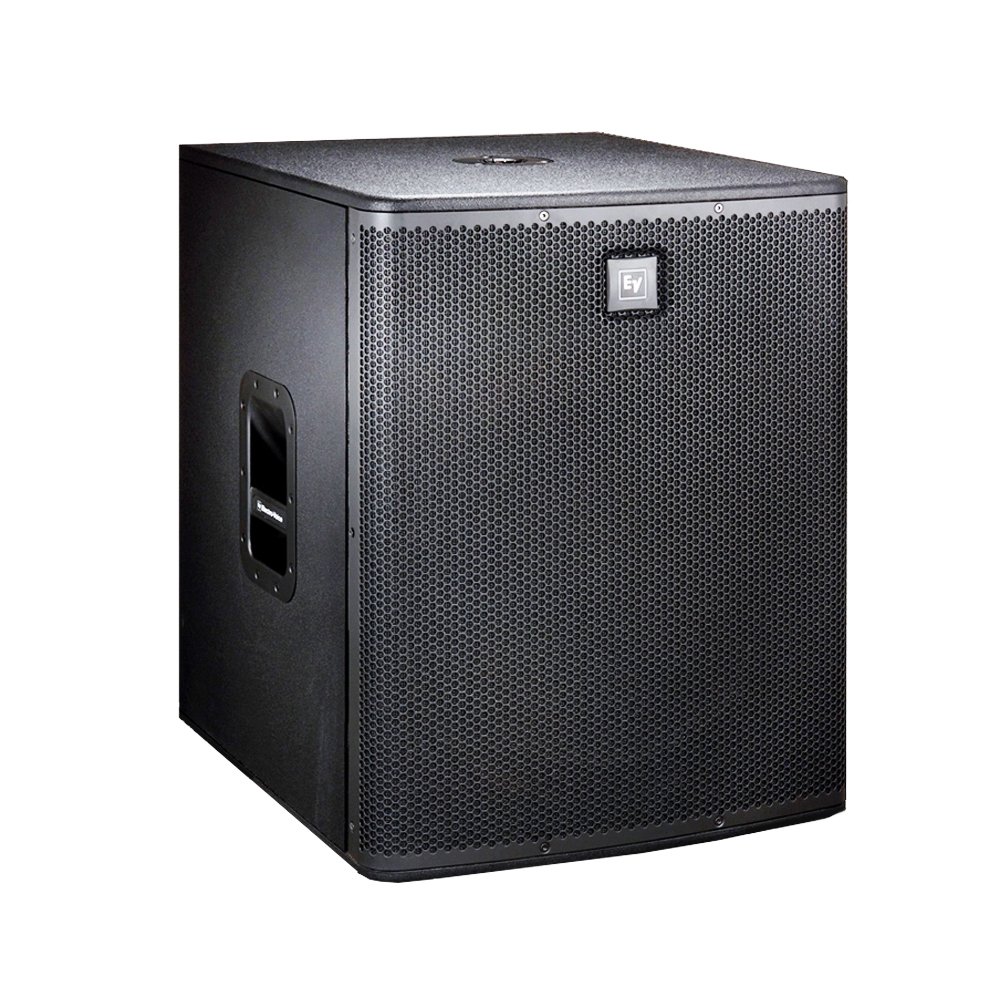

Electro-Voice ELX 118


  • Supplemental bass for ELX112 or ELX115
  • EVS-18K woofer for extended LF
  • 35 Hz – 200 Hz frequency range
  • 134 dB max SPL
  • Power handling: 400 W continuous, 1600 W peak
  • Braced 15mm plywood enclosure
  • Stack or pole-mount full-range boxes
  • Black textured finish
Axial Sensitivity (SPL, 1 W @ 1 m)96 dB
Case Material9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Coverage (Nominal -6 dB)Omnidirectional
Speaker TypeSubwoofer
Woofer Size457.2 mm (18)
Frequency Response (-3 dB)50 – 100 Hz
Frequency Response (-10 dB)35 – 200 Hz
Internal CrossoverYes
Recommended High-Pass Frequency30 Hz
Max. SPL/1m (calc)134 dB
System Power Handling (Continuous/Program/Peak)400//1600 Watts
LF Transducer(1) EVS-18K, 457mm (18″) Woofer
HF TransducerN/A
Crossover FrequencyN/A Hz
Nominal Impedance (Passive)8 Ω
Minimum Impedance6.7 Ω
Connector TypeParallel Neutrik® NL4
Grill18GA Steel with Black Powdercoat
Height661 mm (26.02)
Width507 mm (19.96)
Depth574 mm (22.6)
Weight Net30.6 kg (67.46 lbs)
Additional information
Weight30.6 kg
Dimensions57.4 × 50.7 × 66.1 cm
